52 GHz Bandwidth Socket for BGA121 Package

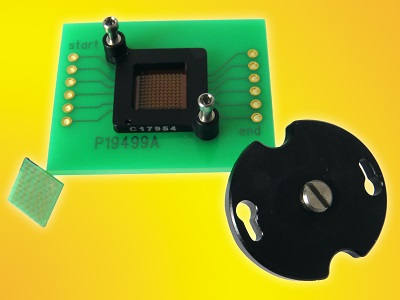

Ironwood Electronics has recently introduced a new high-performance elastomer socket for 0.65 mm pitch BGA package. The SG25-BGA-2051 socket is designed for an 8 mm x 8 mm package size and operates at bandwidths up to 52 GHz with less than 1 dB of insertion loss (GSSG configuration). The contact resistance is typically 20 Source: Ironwood Electronics milliohms per pin. Network analyzer reflection measurements for the GSSG case were taken with all except the pins under consideration terminated into 50 ohms. The socket is mounted using supplied hardware on the target PCB with no soldering, and uses the smallest footprint in the industry (only two mounting holes). The smallest footprint allows inductors, resistors and decoupling capacitors to be placed very close to the device for impedance tuning. The socket also incorporates a simple swivel hardware installation method so that ICs can be changed out quickly.

The SG25-BGA-2051 sockets are constructed with a high-performance and low-inductance elastomer contactor. The temperature range is -35° C to 100° C. The pin self inductance is 0.06 nH and a mutual inductance of 0.019 nH. Capacitance to ground is 0.129 pF and mutual capacitance is 0.017 pF. Current capacity is 2 A per pin.
